Proposal for a 100,000 Mt-day Seawater Desalination - LNG

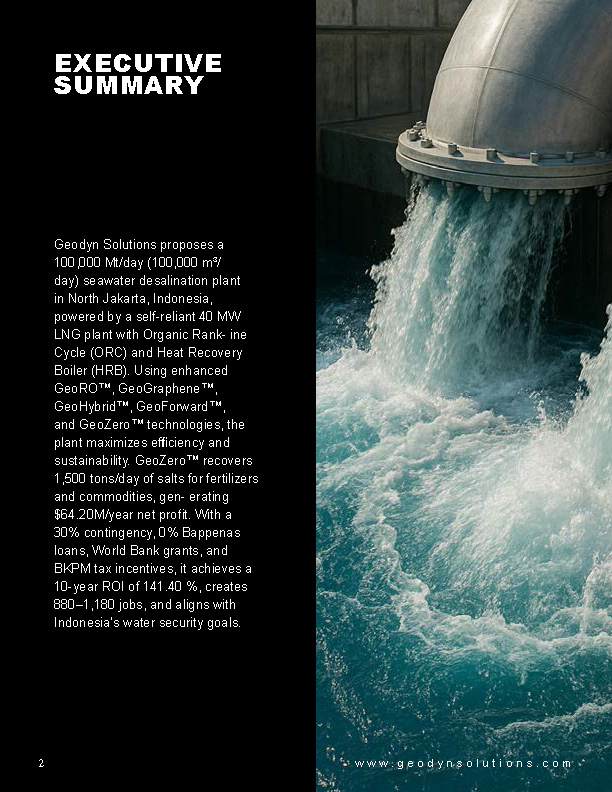

Executive Summary

Geodyn Solutions proposes a 100,000 Mt/day (100,000 m³/day) seawater desalination plant in North Jakarta, Indonesia, powered by a self-reliant 40 MW LNG plant with Organic Rank- ine Cycle (ORC) and Heat Recovery Boiler (HRB). Using enhanced GeoRO™, GeoGraphene™, GeoHybrid™, GeoForward™, and GeoZero™ technologies, the plant maximizes efficiency and sustainability. GeoZero™ recovers 1,500 tons/day of salts for fertilizers and commodities, gen- erating $64.20M/year net profit. With a 30% contingency, 0% Bappenas loans, World Bank grants, and BKPM tax incentives, it achieves a 10-year ROI of 141.40 %, creates 880–1,180 jobs, and aligns with Indonesia’s water security goals.

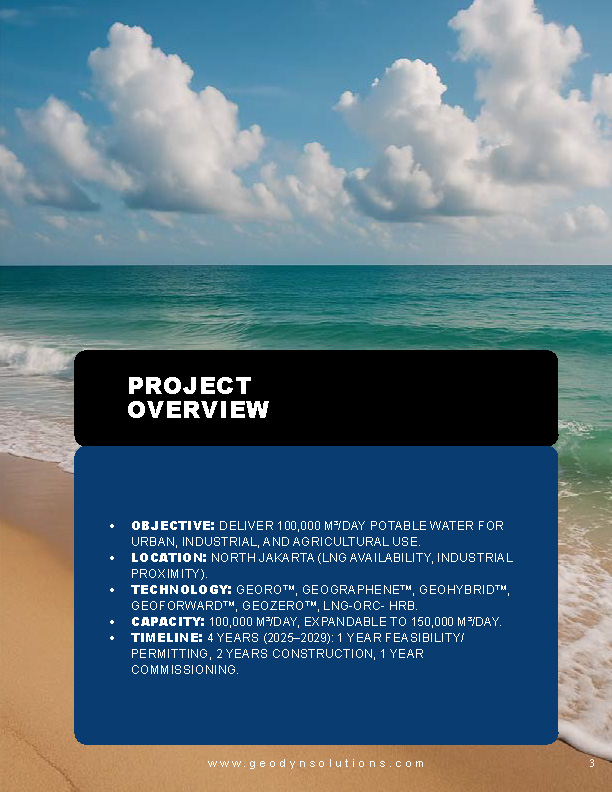

1 Project Overview

Objective: Deliver 100,000 m³/day potable water for urban, industrial, and agricultural

Location: North Jakarta (LNG availability, industrial proximity).

Technology: GeoRO™, GeoGraphene™, GeoHybrid™, GeoForward™, GeoZero™, LNG-ORC-

Capacity: 100,000 m³/day, expandable to 150,000 m³/day.

Timeline: 4 years (2025–2029): 1 year feasibility/permitting, 2 years construction, 1 year

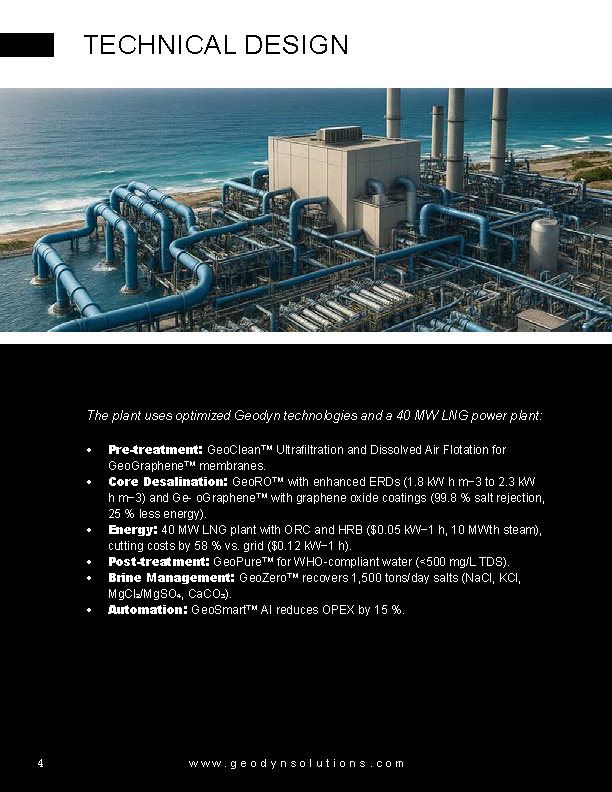

2 Technical Design

The plant uses optimized Geodyn technologies and a 40 MW LNG power plant:

Pre-treatment: GeoClean™ Ultrafiltration and Dissolved Air Flotation for GeoGraphene™ membr

Core Desalination: GeoRO™ with enhanced ERDs (1.8 kW h m−3 to 2.3 kW h m−3) and Ge- oGraphene™ with graphene oxide coatings (99.8 % salt rejection, 25 % less energy).

Energy: 40 MW LNG plant with ORC and HRB ($0.05 kW−1 h, 10 MWth steam), cutting costs by 58 % grid ($0.12 kW−1 h).

Post-treatment: GeoPure™ for WHO-compliant water (<500 mg/L TDS).

Brine Management: GeoZero™ recovers 1,500 tons/day salts (NaCl, KCl, MgCl₂/MgSO₄, CaCO₃).

Automation: GeoSmart™ AI reduces OPEX by 15 %.

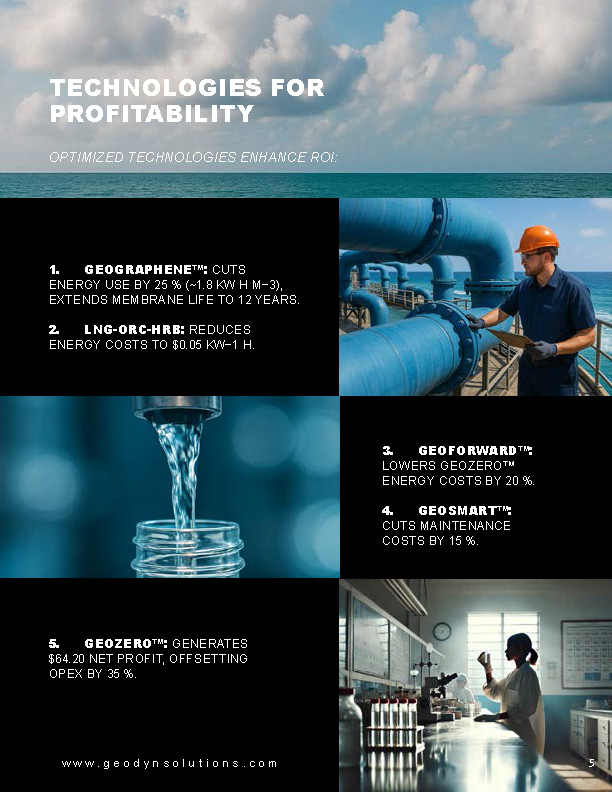

3 Technologies for Profitability

Optimized technologies enhance ROI:

GeoGraphene™: Cuts energy use by 25 % (∼1.8 kW h m−3), extends membrane life to 12

LNG-ORC-HRB: Reduces energy costs to $0.05 kW−1

GeoForward™: Lowers GeoZero™ energy costs by 20 %.

GeoSmart™: Cuts maintenance costs by 15 %.

GeoZero™: Generates $64.20 net profit, offsetting OPEX by 35 %.

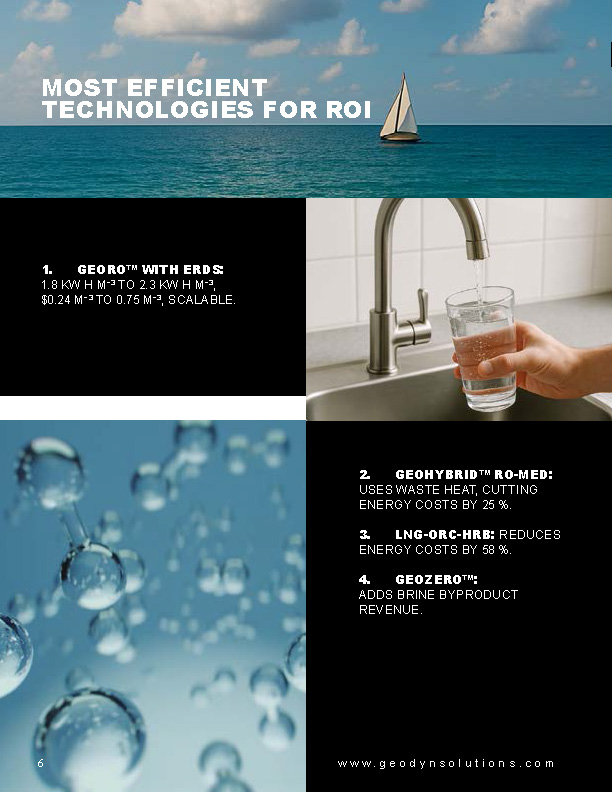

4 Most Efficient Technologies for ROI

GeoRO™ with ERDs: 1.8 kW h m−3 to 2.3 kW h m−3, $0.24 m−3 to 0.75 m−3,

GeoHybrid™ RO-MED: Uses LNG-HRB steam, cutting energy costs by 25 %.

LNG-ORC-HRB: Reduces energy costs by 58 %.

GeoZero™: Adds brine byproduct

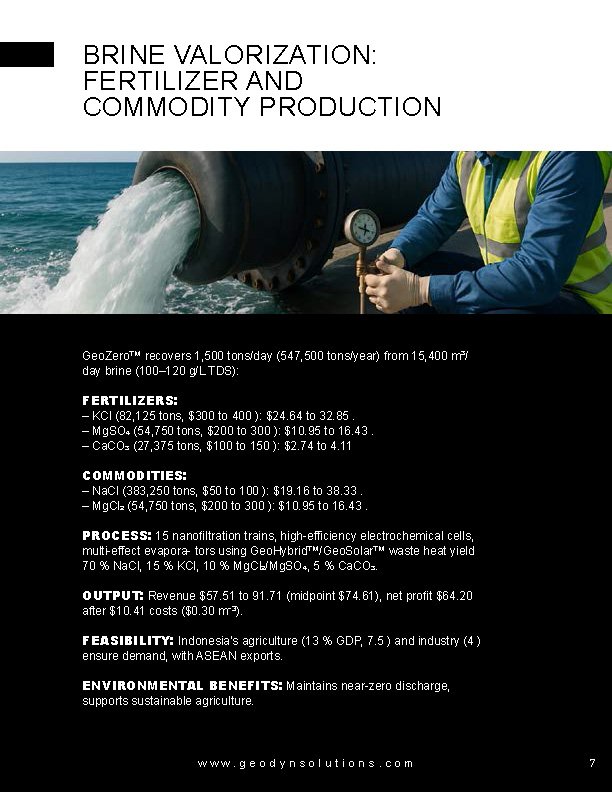

5 Brine Valorization: Fertilizer and Commodity Production

GeoZero™ recovers 1,500 tons/day (547,500 tons/year) from 15,400 m³/day brine (100–120 g/L TDS):

• Fertilizers:

– KCl (82,125 tons, $300 to 400 ): $24.64 to 32.85 .

– MgSO₄ (54,750 tons, $200 to 300 ): $10.95 to 16.43 .

– CaCO₃ (27,375 tons, $100 to 150 ): $2.74 to 4.11 .

• Commodities:

– NaCl (383,250 tons, $50 to 100 ): $19.16 to 38.33 .

– MgCl₂ (54,750 tons, $200 to 300 ): $10.95 to 16.43 .

Process: 15 nanofiltration trains, high-efficiency electrochemical cells, multi-effect evapo- rators using GeoHybrid™/LNG-HRB steam yield 70 % NaCl, 15 % KCl, 10 % MgCl₂/MgSO₄, 5 % CaCO₃.

Output: Revenue $57.51 to 91.71 (midpoint $74.61), net profit $64.20 after $10.41 costs ($0.30 m−3).

Feasibility: Indonesia’s agriculture (13 % GDP, 7.5 ) and industry (4 ) ensure demand, with ASEAN

Environmental Benefits: Maintains near-zero discharge, supports sustainable

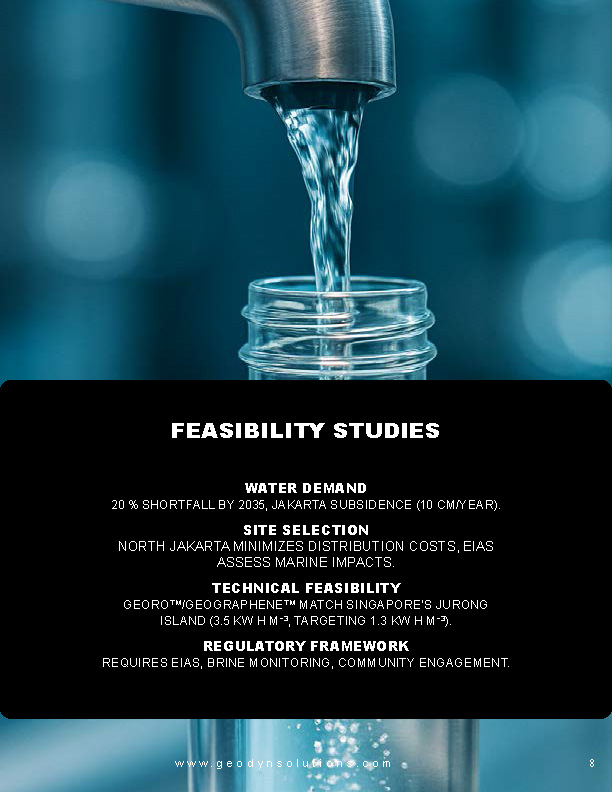

6 Feasibility Studies

Water Demand: 20 % shortfall by 2035, Jakarta subsidence (10 cm/year).

Site Selection: North Jakarta leverages LNG access, EIAs assess marine

Technical Feasibility: GeoRO™/GeoGraphene™ match Singapore’s Jurong Island (3.5 kW h m−3, targeting 1.3 kW h m−3).

Regulatory Framework: Requires EIAs, brine monitoring, community

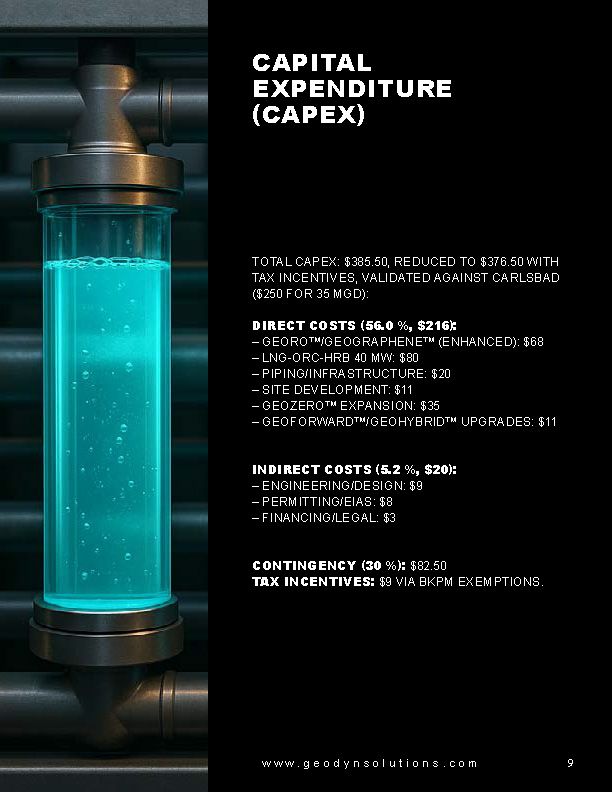

7 Capital Expenditure (CAPEX)

Total CAPEX: $385.50, reduced to $376.50 with tax incentives, validated against Carlsbad ($250 for 35 MGD):

Direct Costs (56.0 %, $216):

GeoRO™/GeoGraphene™ (enhanced): $68

LNG-ORC-HRB 40 MW: $80

Piping/infrastructure: $20

Site development: $11

GeoZero™ expansion: $35

GeoForward™/GeoHybrid™ upgrades: $11

Indirect Costs (5.2 %, $20):

Engineering/design: $9

Permitting/EIAs: $8

Financing/legal: $3

Contingency (30 %): $82.50

Tax Incentives: $9 via BKPM

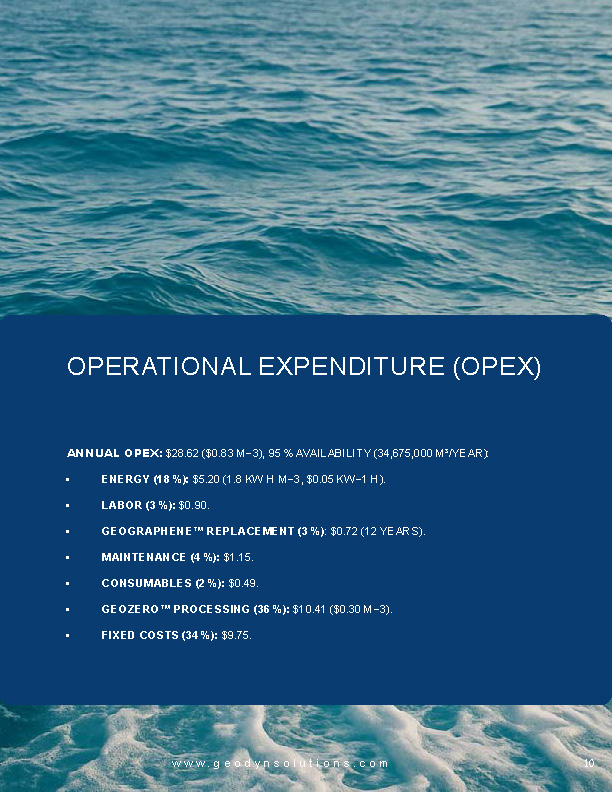

8 Operational Expenditure (OPEX)

Annual OPEX: $28.62 ($0.83 m−3), 95 % availability (34,675,000 m³/year):

Energy (18 %): $5.20 (1.8 kW h m−3, $0.05 kW−1 h).

Labor (3 %): $0.90.

GeoGraphene™ Replacement (3 %): $0.72 (12 years).

Maintenance (4 %): $1.

Consumables (2 %): $0.

GeoZero™ Processing (36 %): $10.41 ($0.30 m−3).

Fixed Costs (34 %): $9.75.

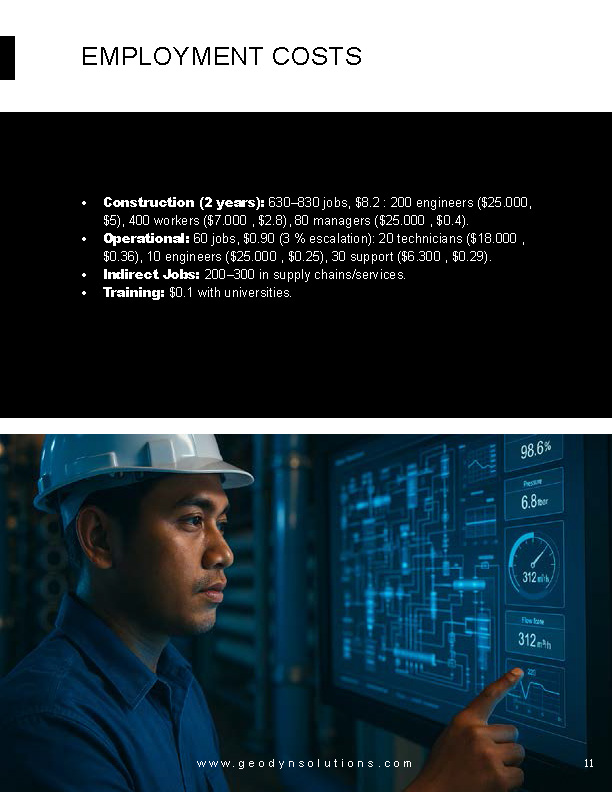

9 Employment Costs

Construction (2 years): 630–830 jobs, $8.2 : 200 engineers ($25.000 , $5), 400 workers ($7.000 ,

$2.8), 80 managers ($25.000 , $0.4).

Operational: 60 jobs, $0.90 (3 % escalation): 20 technicians ($18.000 , $0.36), 10 engineers ($25.000 , $0.25), 30 support ($6.300 , $0.29).

Indirect Jobs: 200–300 in supply chains/services.

Training: $0.1 with

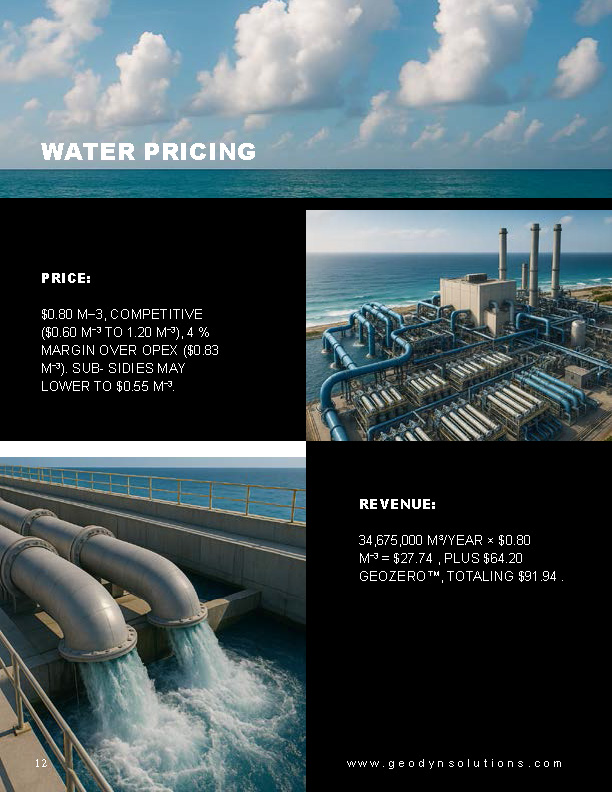

10 Water Pricing

Price: $0.80 m−3, competitive ($0.60 m−3 to 1.20 m−3), 4 % margin over OPEX ($0.83 m−3). Sub- sidies may lower to $0.55 m−3.

Revenue: 34,675,000 m³/year × $0.80 m−3 = $27.74 , plus $64.20 GeoZero™, totaling $91.94 .

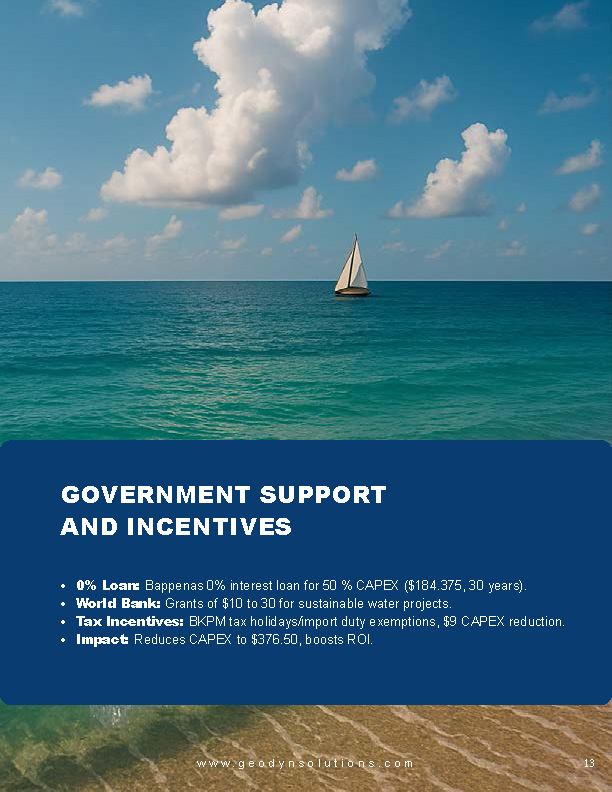

11 Government Support and Incentives

0% Loan: Bappenas 0% interest loan for 50 % CAPEX ($184.375, 30 years).

World Bank: Grants of $10 to 30 for sustainable water

Tax Incentives: BKPM tax holidays/import duty exemptions, $9 CAPEX

Impact: Reduces CAPEX to $376.50, boosts R

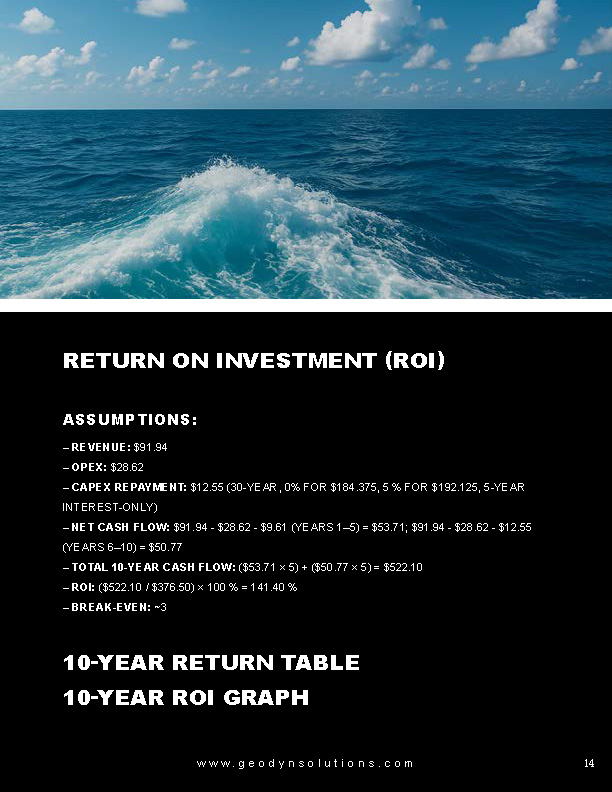

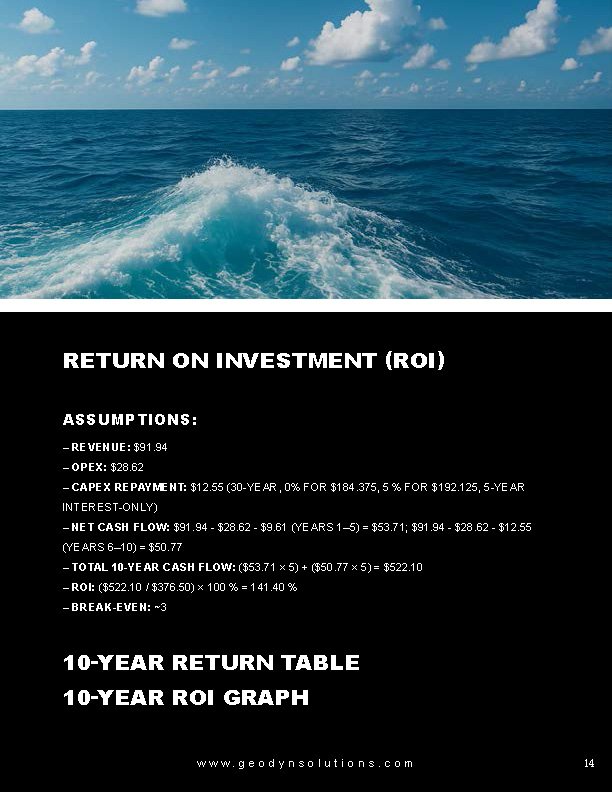

12 Return on Investment (ROI)

• Assumptions:

Revenue: $91.94

– OPEX: $28.62

CAPEX repayment: $12.55 (30-year, 0% for $184.375, 5 % for $192.125, 5-year interest-only)

– Net Cash Flow: $91.94 – $28.62 – $9.61 (Years 1–5) = $53.71; $91.94 – $28.62 – $12.55 (Years 6–10)

= $50.77

– Total 10-Year Cash Flow: ($53.71 × 5) + ($50.77 × 5) = $522.10

– ROI: ($522.10 / $376.50) × 100 % = 141.40 %

Break-even: ∼3

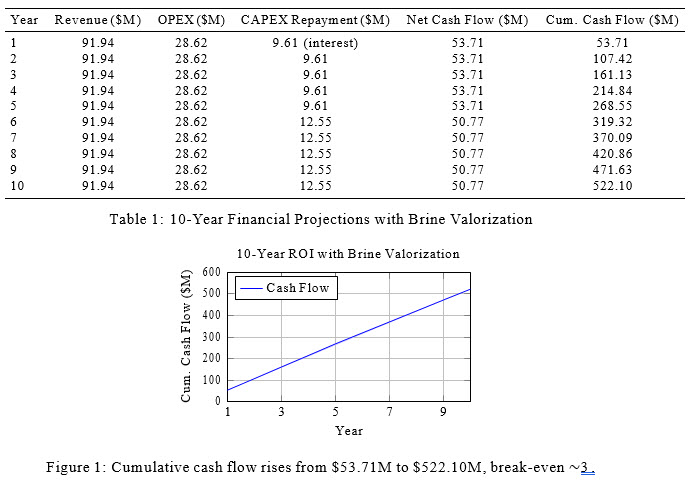

13 10-Year Return Table

10-Year ROI Graph

Environmental Impact

GeoZero™: Recovers 1,500 tons/day salts, maintaining near-zero

Marine Ecosystem: GeoIntake™ low-velocity systems, EIAs ensure

Carbon Footprint: LNG-ORC-HRB cuts emissions by ∼30.000 grid (0.4 kg2/kWh).

Community: Consultations address concerns; fertilizers aid

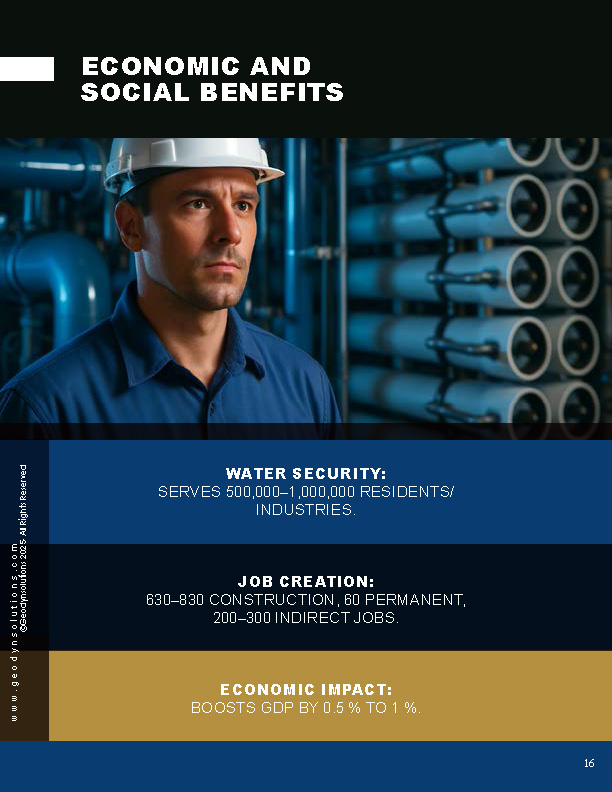

1 Economic and Social Benefits

Water Security: Serves 500,000–1,000,000 residents/industries.

Job Creation: 630–830 construction, 60 permanent, 200–300 indirect

Economic Impact: Boosts GDP by 0.5 % to 1 %.

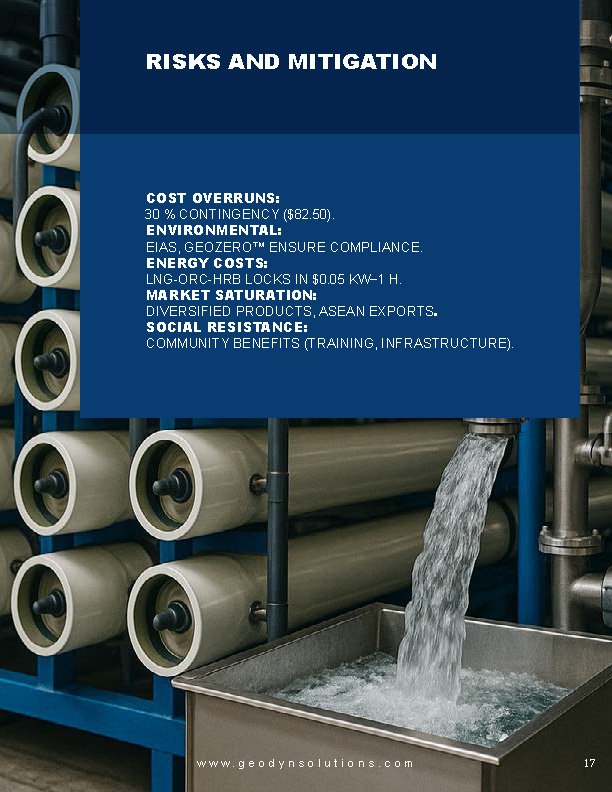

2 Risks and Mitigation

Cost Overruns: 30 % contingency ($82.50).

Environmental: EIAs, GeoZero™ ensure

Energy Costs: LNG-ORC-HRB locks in $0.05 kW−1

Market Saturation: Diversified products, ASEAN

Social Resistance: Community benefits (training, infrastructure).

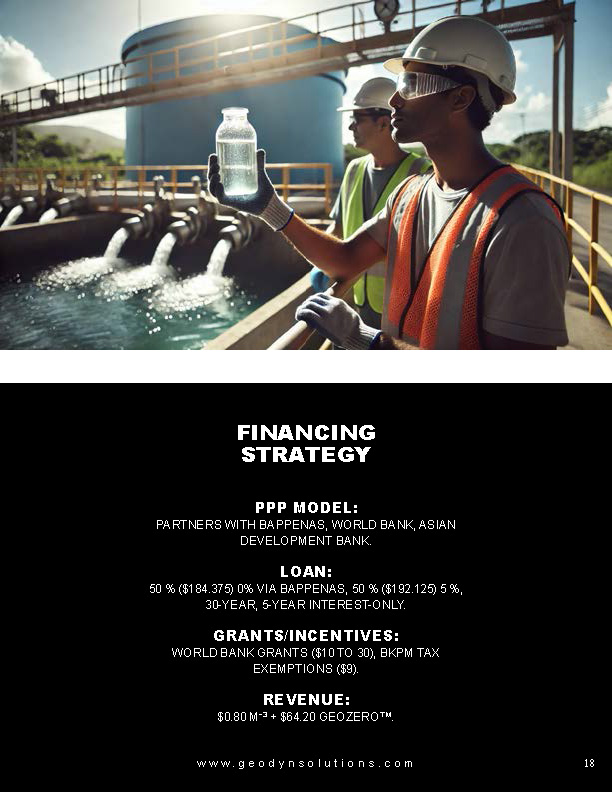

3 Financing Strategy

PPP Model: Partners with Bappenas, World Bank, Asian Development

Loan: 50 % ($184.375) 0% via Bappenas, 50 % ($192.125) 5 %, 30-year, 5-year interest-only.

Grants/Incentives: World Bank grants ($10 to 30), BKPM tax exemptions ($9).

Revenue: $0.80 m−3 + $64.20 GeoZero™.

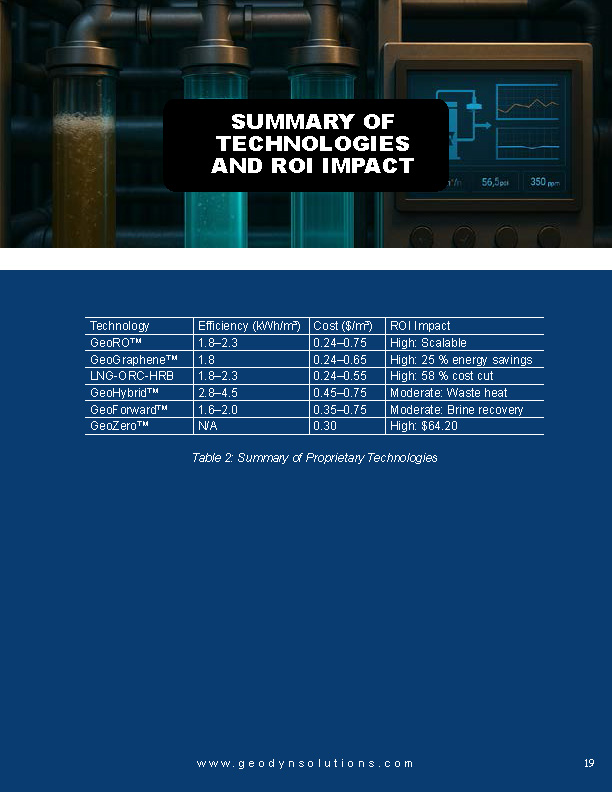

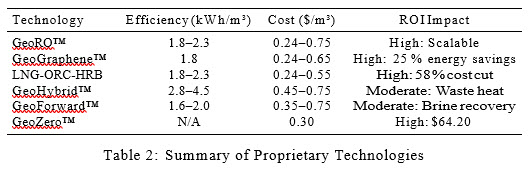

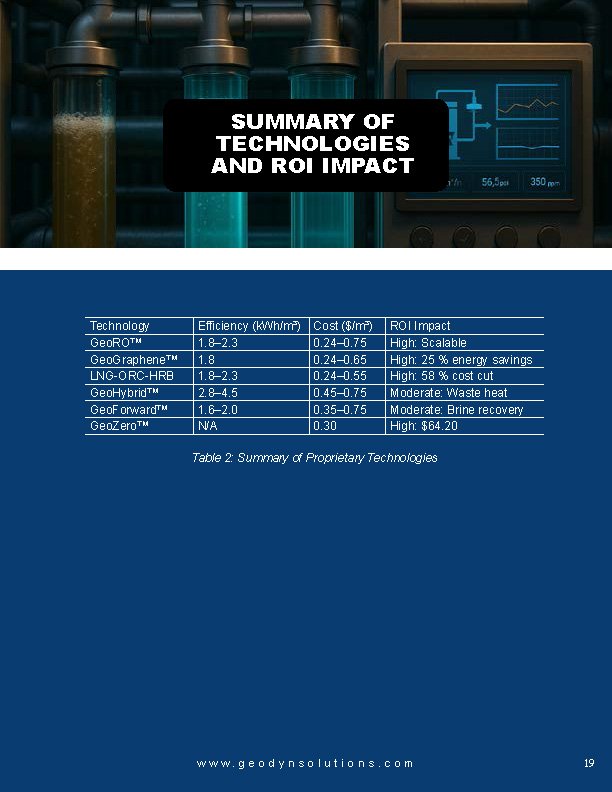

4 Summary of Technologies and ROI Impact

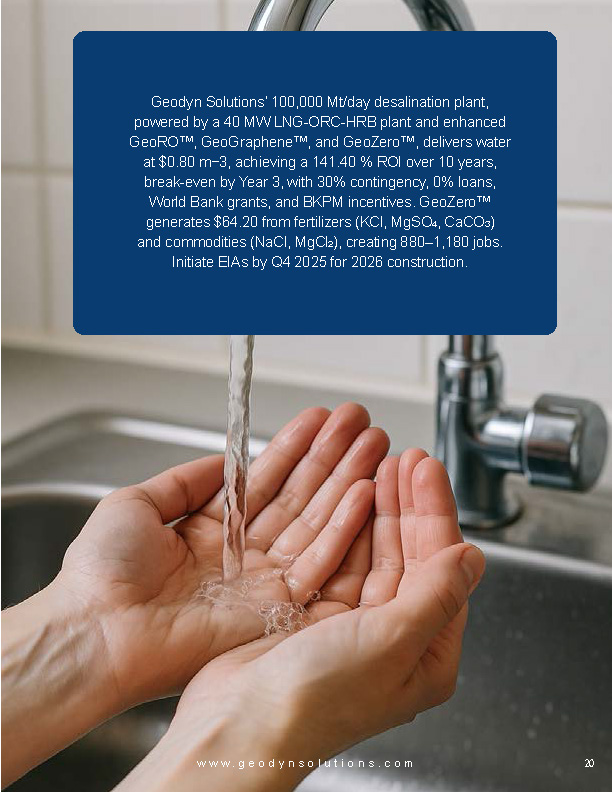

1 Conclusion

Geodyn Solutions’ 100,000 Mt/day desalination plant, powered by a 40 MW LNG-ORC-HRB plant and enhanced GeoRO™, GeoGraphene™, and GeoZero™, delivers water at $0.80 m−3, achieving a 141.40 % ROI over 10 years, break-even by Year 3, with 30% contingency, 0% loans, World Bank grants, and BKPM incentives. GeoZero™ generates $64.20 from fertilizers (KCl, MgSO₄, CaCO₃) and commodities (NaCl, MgCl₂), creating 880–1,180 jobs. Initiate EIAs by Q4 2025 for 2026 construction.
